We are Manufacturer, Supplier, Exporter of Seat Check Sensor Module and our set up in Pune, Maharashtra, India.

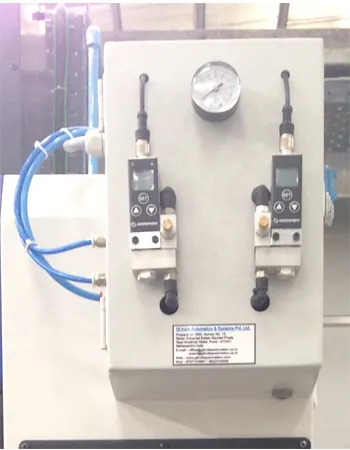

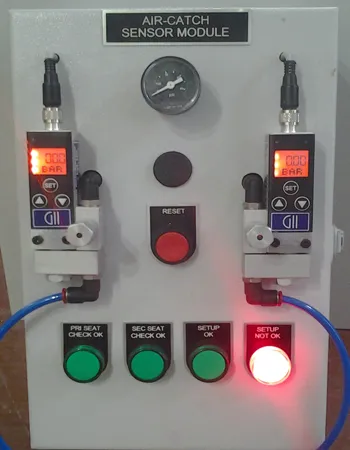

Seat Check Sensor Module

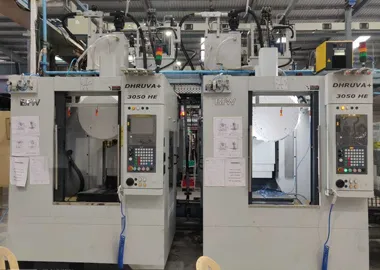

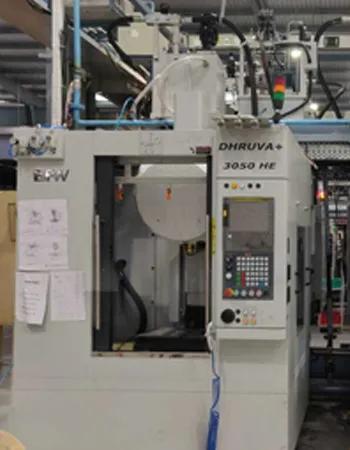

We provide Seat Check Sensor Modules as a complete solution by supplying and Interfacing with CNC Machines.
PURPOSE
To ensure proper seating of job on fixture and thus Avoiding -
Improper machining
Tool & Job damage
Plug and Play Modular System
Optional - SOPA Sensors with Air Blast Circuit
Working Principle
It works on back pressure sensing.
Compressed air at about 2Kg is allowed to purge on butting places of job and fixture through 1.2 to 2 mm hole.
Job is kept on the fixture and the back pressure is sensed by the sensor.
In ideal condition the back pressure is to be 2Kg. i.e. there is no air gap between Job surface and fixture.
In case of presence of foreign object will cause Air leakage and thus, reduction in back pressure, which in turn is sensed by the sensor.
Features :
- Double Set Point.
- 2 PNP Outputs.
- Accuracy Up To 20 Microns.
- With 2mtr Connector Cable As Standard.
- With Inlet/Outlet Fitting.
- Programmable Set Points.
- Inlet Pressure 2bar.
- Ideal For Robotic Applications.
- Pass Word Protection For Set Points.
- Over Pressure Up To 16bar.
- Digital Display Of Pressure.
- Supply Voltage 24vdc.
- Visible Led Indicators For Individual Out Puts.
- Easy Setting With Digital Display.
